Card Type	Network Interface Card
NIC Type	Token Ring
Boot ROM	Available
Network Transfer Rate	Unidentified
Topology	Ring
Wiring Type	Unshielded twisted pair AUI transceiver via DB-9 port
Data Bus	8-bit ISA

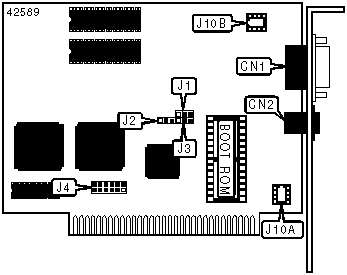

CONNECTIONS
Function	Label
AUI transceiver via DB-9 connector	CN1
RJ-11 UTP connector	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
Boot ROM enabled	J1	Pins 1 & 2 closed
Boot ROM disabled	J1	Pins 1 & 2 closed
WD8005 is primary adapter	J2	Pins 1 & 2 closed
WD8005 is secondary adapter	J2	Pins 1 & 2 closed

ROM SIZE SELECTION
Size	J3
32KB	Pins 1 & 2 closed
64KB	Pins 2 & 3 closed

INTERRUPT SELECTION
IRQ	J4
2	Pins 6 & 7 closed
3	Pins 5 & 8 closed
4	Pins 4 & 9 closed
5	Pins 3 & 10 closed
6	Pins 2 & 11 closed
7	Pins 1 & 12 closed

CABLE TYPE SELECTION
Type		J10A	J10B
	AUI transceiver via DB-9 port	Open	Closed
»	Unshielded twisted pair	Closed	Open
