Card Type	Multi-I/O
Chipset	Unidentified
Maximum Onboard Memory	384KB DRAM
I/O Options	Clock/calendar, game port, parallel port, serial port
Data Bus	8-bit ISA

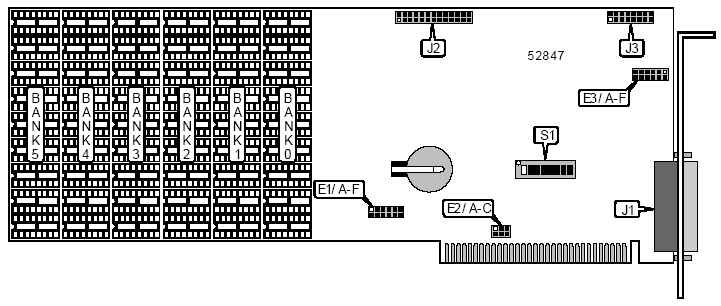

CONNECTIONS
Function	Label	Function	Label
Serial port	J1	Game port	J3
Parallel port	J2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Game port enabled	E1/E	Closed
	Game port disabled	E1/E	Open
»	Clock/calendar enabled	E1/F	Closed
	Clock/calendar disabled	E1/F	Open
»	Parallel port uses IRQ7	E2/C	Closed
	Parallel port does not use IRQ7	E2/C	Open
»	Factory configured - do not alter	SW1/7	N/A
»	Parity checking on memory enabled	SW1/8	On
	Parity checking on memory disabled	SW1/8	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3	Bank 4	Bank 5
0KB	None	None	None	None	None	None
64KB	(9) 64K x 1	None	None	None	None	None
128KB	(9) 64K x 1	(9) 64K x 1	None	None	None	None
192KB	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1	None	None	None
256KB	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1	None	None
320KB	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1	None
384KB	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1	(9) 64K x 1

DRAM SWITCH CONFIGURATION
Size	SW1/4	SW1/5	SW1/6
0KB	Off	Off	Off
64KB	Off	Off	On
128KB	Off	On	Off
192KB	Off	On	On
256KB	On	Off	Off
320KB	On	Off	On
384KB	On	On	Off

STARTING MEMORY ADDRESS SELECTION
Setting	S1/1	S1/2	S1/3
64KB	Off	Off	Off
128KB	Off	Off	On
192KB	Off	On	Off
256KB	Off	On	On
320KB	On	Off	Off
384KB	On	Off	On
448KB	On	On	Off
512KB	On	On	On

SERIAL PORT ADDRESS SELECTION
Setting		E1/A	E1/B
»	COM1: (3F8h)	Closed	Open
	COM2: (2F8h)	Open	Closed

SERIAL PORT INTERRUPT SELECTION
Setting		E2/A	E2/B
	IRQ3	Closed	Open
»	IRQ4	Open	Closed

SERIAL PORT CTS SIGNAL
Setting		E3/A	E3/B
»	CTS normal	Open	Closed
	CTS forced high	Closed	Open

SERIAL PORT DSR SIGNAL
Setting		E3/C	E3/D
»	DSR normal	Open	Closed
	DSR forced high	Closed	Open

SERIAL PORT DCD SIGNAL
Setting		E3/E	E3/F
»	DCD normal	Open	Closed
	DCD forced high	Closed	Open

PARALLEL PORT ADDRESS SELECTION
Setting		E1/C	E1/D
»	378h	Closed	Open
	278h	Open	Closed
