Card Type	Hard drive controller card
Hard Drives supported	Two IDE (AT) drives
Floppy drives supported	Two 360KB, 720KB, 1.2MB, or 1.44MB drives
Data Bus	16-bit ISA
Card Size	Three-quarter length, full-height card

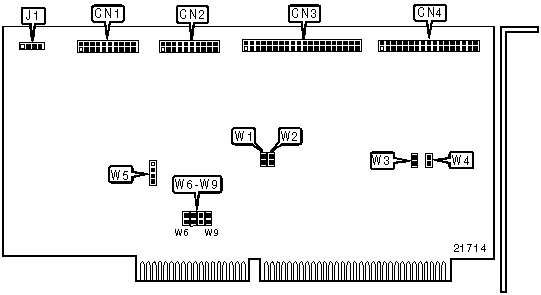

CONNECTIONS
Function	Location	Function	Location
Disk 1 connector	CN1	34-pin cable connector - floppy drive	CN4
Disk 0 connector	CN2	4-pin connector - drive active LED	J1
40-pin primary IDE(AT) connector	CN3

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Primary Winchester address	W1	Open
	Secondary Winchester address	W1	Closed
	Primary floppy address	W2	Open
	Secondary floppy address	W2	Closed
	Precompensation value = 125 ns	W3	Open
	Precompensation value = 187 ns	W3	Closed
	Single speed floppy drives	W4	Open
	Dual speed floppy drives	W4	Closed
»	Format incompatible with CCAT103	W6	Open
	Format compatible with CCAT103	W6	Closed
»	Winchester in latched mode	W7	Open
	Winchester in non-latched mode	W7	Closed
»	Four byte ECC	W8	Open
	Reserved byte ECC	W8	Closed
»	Cacheing enabled	W9	Open
	Caching disabled	W9	Closed

BUFFER SIZE SELECTION
Size		W5 Pins 1 & 2	W5 Pins 3 & 4
»	8KB	Closed	Open
	2KB	Open	Closed
